Product Details
1. Product Positioning & Core Advantages
2. Core Product Features
High-Quality Light Source & Ultra-High Efficacy: Equipped with Samsung and Osram LED chips, it achieves a PPF of 4557 μmol/s and a light efficacy of 2.94 μmol/s/W. Its efficiency in converting electrical energy into plant-usable light energy leads the industry, reducing energy loss and providing efficient, energy-saving lighting support for large-scale cultivation.
Adjustable Full Spectra for Multiple Growth Stages: Built-in with three spectrum modes—Spring (Seedling Stage), Summer (Vigorous Growth & Early Flowering Stages), and Autumn (Full Flowering & Harvest Stages). Users can flexibly switch between modes according to crops’ needs from seedling to harvest, precisely regulating light composition to enhance crop growth and quality.
Wide Voltage Adaptation & High Energy Utilization: Supports a wide input voltage range of 277V-480V, adapting to different industrial power scenarios; with a power factor of ≥0.97, it ensures high electrical energy utilization efficiency and stable power supply, effectively reducing electricity costs for large-scale cultivation.
Efficient Passive Heat Dissipation & High Protection: Adopts a passive heat dissipation design, achieving stable temperature control without fans—avoiding noise interference and mechanical failures. With an IP66 waterproof rating, it can resist harsh environments such as humidity and dust, making it suitable for long-term use in high-humidity cultivation scenarios like greenhouses.
Wide Light Distribution & Scientific Installation: Features a 120° light distribution angle, ensuring wide and uniform light coverage with minimal dark spots. The recommended mounting height is ≥36 inches (approximately 91.4cm), which guarantees uniform light projection onto the crop canopy and maximizes light utilization efficiency.
Long-Lasting Durability & Quality Assurance: Boasts a service life of L90: >54,000 hours, with minimal light decay during long-term use and strong stability; paired with a 5-year warranty, it reduces post-maintenance costs and concerns for commercial growers.
Technical Specifications Table
| Specification Category | Detailed Specifications |
|---|---|

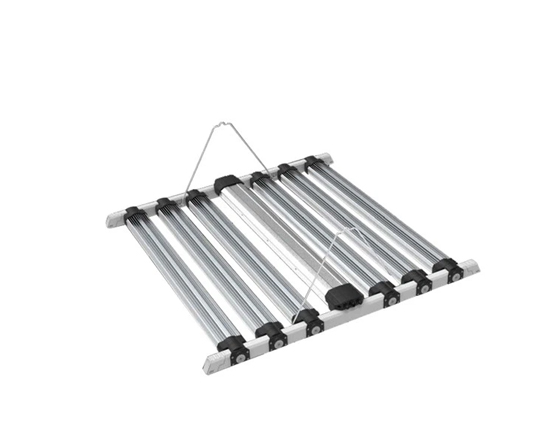

| Product Model | Octopus 1550W |
| Light Source Type | Samsung & Osram LED Chips |
| Spectrum Type | Full spectrum (adjustable, including Spring/Summer/Autumn modes) |
| Photosynthetic Photon Flux (PPF) | 4557 μmol/s |
| Light Efficacy | 2.94 μmol/s/W |
| Operating Frequency | 50/60 Hz |
| Input Power | 1550W |
| Input Voltage & Corresponding Current | 277V (5.6A), 347V (4.5A), 380V (4.1A), 480V (3.2A) |
| Product Dimensions (L×W×H) | 1200mm (47.2 inches) × 1198mm (47.1 inches) × 102mm (4.0 inches) |
| Product Weight | 37 kg (81.6 lbs) |
| Recommended Mounting Height | ≥36 inches (≈91.4cm, above crop canopy) |
| Heat Dissipation Method | Passive Heat Dissipation |
| Light Distribution Angle | 120° |
| Service Life (L90) | >54,000 hours |
| Power Factor | ≥0.97 |
| Waterproof Rating | IP66 |
| Warranty Period | 5-year warranty |
| Certifications | DLC, ETL, CE (compliant with international safety and energy efficiency standards) |
| Application Scenarios | Large commercial greenhouses, professional growing bases, large-scale seedling centers, industrial plant factories |
Spectrum Mode Details
| Spectrum Mode | Target Growth Stage | Core Functions |
|---|---|---|
| Spring | Seedling Stage | Emphasizes light wavelengths that promote seed germination and seedling growth; simulates mild spring light to support root development and robust stem/leaf growth. |
| Summer | Vigorous Growth & Early Flowering Stages | Enhances the proportion of spectra that boost photosynthesis and nutrient accumulation; simulates abundant summer light to meet the high energy needs of rapid growth and support flower bud differentiation. |
| Autumn | Full Flowering & Harvest Stages | Adjusts light composition to favor flowering, pollination, and fruit development; simulates autumn light characteristics to extend the full flowering period, improve fruit set rate, and help fruits accumulate sugars and flavor compounds. |
Installation Recommendations
Mounting Height: Strictly follow the recommended height of ≥36 inches (≈91.4cm) to ensure uniform light coverage across the crop canopy and avoid uneven growth caused by excessive or insufficient local light intensity.
Fixture Spacing: Plan the spacing between fixtures based on the 120° light distribution angle (typically 1.5-2 times the mounting height) to eliminate light gaps and ensure seamless coverage.
Environmental Requirements: Install in well-ventilated areas to assist the passive heat dissipation system in maintaining optimal operating temperature; avoid direct contact with water or corrosive substances despite the IP66 rating.
