Product Details
The 12-Bar High-Power LED Grow Light 1500W is a high-wattage supplementary lighting device designed specifically for large-scale greenhouses, plant factories, and similar scenarios. It features a matrix layout of 12 LED bars, paired with high-quality Samsung/Osram LED chips, delivering abundant and uniform photosynthetically active radiation (PAR). It is particularly suitable for the full-cycle cultivation of crops with high photosynthetic demands (such as fruits, vegetables, and high-value flowers), and has been proven through practice to achieve an over 45% increase in yield.
The product’s core design focuses on "stability and flexibility":
Dual Power Supply System: Prevents overall shutdown caused by single power failure, ensuring power supply safety and continuity during high-power (1500W) operation.
180° Foldable Lamp Body: Allows adjustment of the lamp angle based on planting rack height and crop growth density to expand light coverage; also enables folded storage during transportation or idleness, saving space.
In terms of spectrum configuration, two full-spectrum options with different red light ratios are available:
R42 Red Light Ratio: More suitable for the vegetative growth stage of crops, promoting robust growth of branches and leaves.
R48 Red Light Ratio: Enhances photosynthetic efficiency during the flowering and fruiting stages, improving fruit sugar content and yield.
Additionally, the product has an IP65 waterproof rating to resist moisture erosion in high-humidity greenhouse environments. Its passive heat dissipation design, combined with a large-area heat dissipation structure, efficiently dissipates heat generated by the 12 LED bars during operation, ensuring a long lamp lifespan (L90: >54,000hrs). With ETL, CE, and DLC certifications plus a 5-year warranty, it provides long-term and reliable supplementary lighting support for large-scale cultivation.
Technical Specifications
| Specification Category | Detailed Specifications |
|---|---|
| Product Model | Grow Lighting LED 1500W |
| Light Source Type | Samsung / Osram LED Chips (12-bar matrix layout) |
| Spectrum Type | Full spectrum, optional R42 red light ratio / R48 red light ratio |
| Input Voltage | 110V, 120V, 208V, 220V, 240V, 277V |
| Input Current | 13.6A (110V), 12.5A (120V), 7.2A (208V), 6.8A (220V), 6.3A (240V), 5.4A (277V) |
| Frequency | 50/60 Hz |
| Input Power | 1500W |
| Product Dimensions (L×W×H) | 117.5cm×175.1cm×7.8cm (4×6ft, 180° foldable) |
| Product Weight | 19.6 kg |
| Operating Ambient Temperature | 95°F/35℃ |

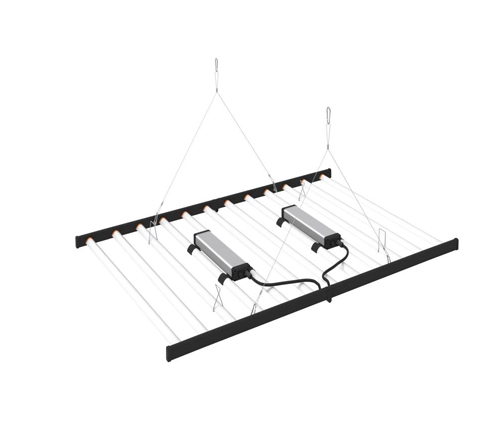

| Installation Method | Hook-mounted (includes Lance Hanger and other accessories, suitable for greenhouse ceiling structures) |
| Heat Dissipation Method | Passive heat dissipation (with optimized heat dissipation structure) |
| External Control Signal | 0-10V |
| Dimming Options | 40% / 50% / 60% / 80% / 100% / EXT-OFF |
| Light Distribution Angle | 120° (even coverage, reducing crop shadow overlap) |
| Service Life | L90: >54,000hrs |
| Waterproof Rating | IP65 (resists high humidity and moisture erosion, suitable for greenhouse environments) |
| Power Supply Method | Dual power supply (ensures stability during high-power operation) |
| Warranty Period | 5-year warranty |
| Certifications | ETL, CE, DLC |
| Application Scenarios | Large-scale greenhouses, plant factories, full-cycle cultivation of high-value crops (fruits, flowers) |
