HLEDTLR Driver Version 1000W

  • Multiple Spectrum Options Available
  • High Efficiency, Low Power Consumption & Low Heat Emission
  • Perfect Replacement for HPS Fixtures
  • Customization Supported
Product details

Product Details

1. Product Positioning & Core Advantages

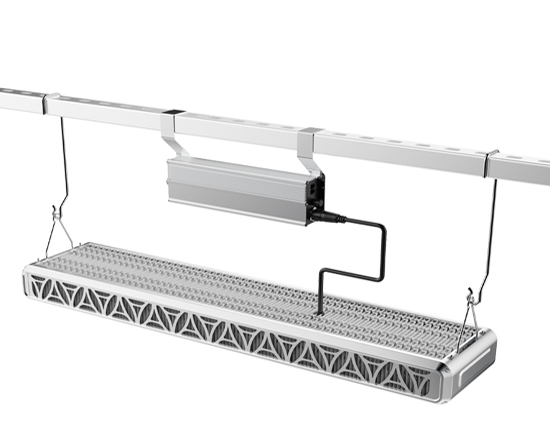

The HLEDTLR Driver Version is a plant grow light specifically designed for growing scenarios without pre-installed lighting equipment. It forms a differentiated adaptation with the ballast version (suitable for existing HPS lighting setups), enabling precise matching of the power needs of different planting sites. As an official partner of Samsung Electronics and Osram, this product achieves industry-leading standards in industrial design, material selection, LED chip brand, spectrum ratio, and cost control, providing a reliable choice for users pursuing high-quality planting lighting.

2. Core Product Features

  1. Modular Custom Design: Supports easy assembly and personalized customization according to users’ different power requirements. It not only meets diverse planting lighting needs but also effectively reduces production costs, helping users improve profit margins.

  2. Lightweight, Durable & Efficient Heat Dissipation: Adopts a lightweight design, combined with a cold-forged aluminum heat sink and a dedicated heat dissipation structure. While significantly reducing the overall weight of the product, it achieves efficient passive heat dissipation, balancing aesthetics, portability, and durability for stronger stability during long-term use.

  3. High-Quality Light Performance: Built-in optical lenses significantly improve the light emission uniformity of LED chips. Combined with a 120° light distribution design, extensive experiments have verified that it can provide a more suitable lighting environment for plant growth, promoting healthy plant development.

  4. Diverse Spectrum Options: Offers multiple spectrum solutions such as R48G34B18, R48G32B15FR5, R85G5B5FR5, and R90G5B5 to meet the needs of different plant species. Among them, the spectrum formulas containing far-infrared light are developed based on planting data from multiple customers, which can effectively enhance the aroma of fruit and flower plants and improve fruit taste.

Technical Specifications Table

Specification CategoryHLEDTLR-600HHLEDTLR-1000H
Light Source TypeLEDLED
Input Voltage100-277V100-277V
Input Current2.2-6A3.6-10A
Operating Frequency50/60 Hz50/60 Hz
Input Power600W1000W
Product Dimensions (L×W×H)645mm×210mm×95mm935mm×210mm×95mm
Product Weight2.9kg3.8kg
Operating Ambient Temperature0-40℃ / 32-104℉0-40℃ / 32-104℉
Heat Dissipation MethodPassive Heat DissipationPassive Heat Dissipation
External Control Signal0-10V0-10V
Dimming Options40% / 50% / 60% / 80% / 100% / EXT OFF40% / 50% / 60% / 80% / 100% / EXT OFF
Light Distribution Angle120°120°
Service Life (L90)>54,000 hours>54,000 hours
Power Factor≥0.95≥0.95
Waterproof RatingIP65IP65
